Automatic Pill Tablet Capsule Counting Bottling And Packaging Line
DL25 Fully Automatic Pill Tablet Capsule Counting Bottling And Packaging Line
This complete automatic bottling line conforms to GMP standard. On the basis of practicability and efficiency, it can help you save cost and complete the bottling and packaging of products more accurately and beautifully. As you can see, it is of a high degree of automation, stable and reliable product performance, convenient operation and maintenance, exquisite and beautiful appearance. What’s more, it can ensure that every product under the production line is flawless. All you have to do is watching it produce!
More practical:Compared with manual labeling, labeling bottles by the labeling machine can make the product more beautiful and firmer.
Multiple-choice:Each machine on the production line can be matched at will, and other equipment can be added at any time in the future.
High precision:The design of three-stage vibration can help avoid stacking, ensuring the accuracy and count error is lower than 1/10000.
YL-LP160 Bottle Unscrambler
Used in many different shapes and specifications of plastic bottles in companies to automatically arrange andoutput directionally. It is an ideal supporting equipment for various plastic bottle production lines. |
|

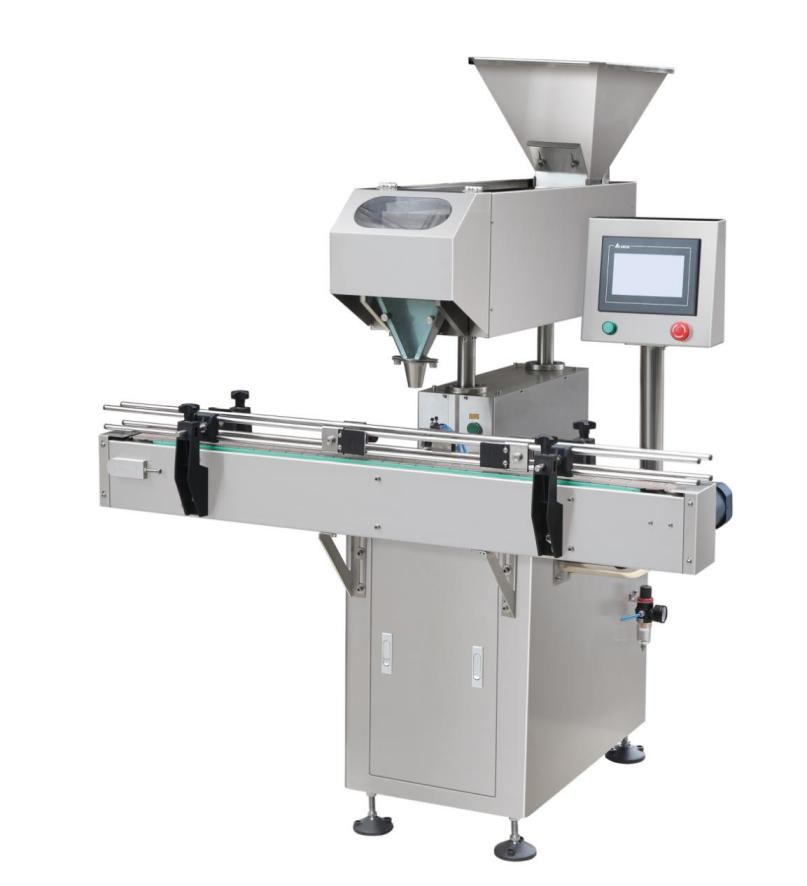

YL-8/12/16 Counting Machine
This machine can be widely used for fast counting and bottling of various shapes and sizes of tablets, capsules, pills and other food, health care products and other materials. The counting and bottling speed and accuracy rate have reached the advanced level of similar products at home and abroad. |
|

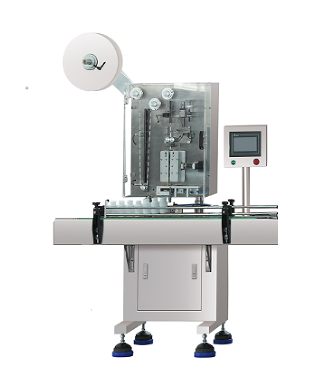

YL-DIM10 Desiccant dispenser
This machine is an upgraded product of our company. It has simple structure and easy operation. More importantly, stepless adjustment can be made to the production capacity according to the specifications and characteristics of bottles and desiccant sachets. This machine has strong adaptability to bottles. For glass bottles and plastic bottles of various specifications containing food, cosmetics, the filling effect of desiccant sachets is satisfactory. |
|

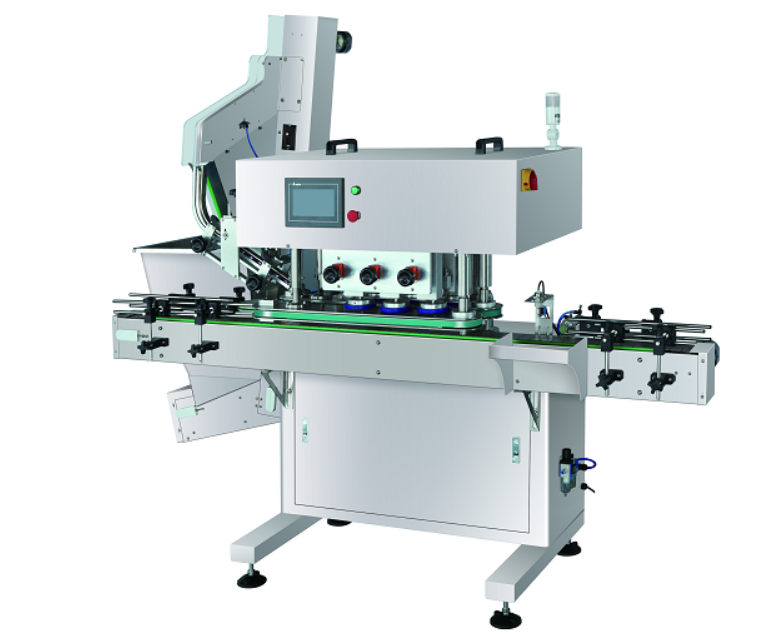

YL-XG03 high speed capping machine
This machine can complete the process of automatic bottle feeding, cap unscrambling, cap conveying, cap putting, cap pressing, cap screwing and bottle discharging. |
|

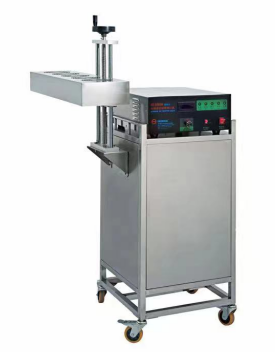

YL-2000A Aluminum foil sealing machine
Composite electromagnetic induction sealing technology is an internationally recognized advanced sealing packaging method. It has been increasingly widely used in high-quality air-tight sealing of food, cosmetics, pesticides, chemical products and other bottled products. |
|

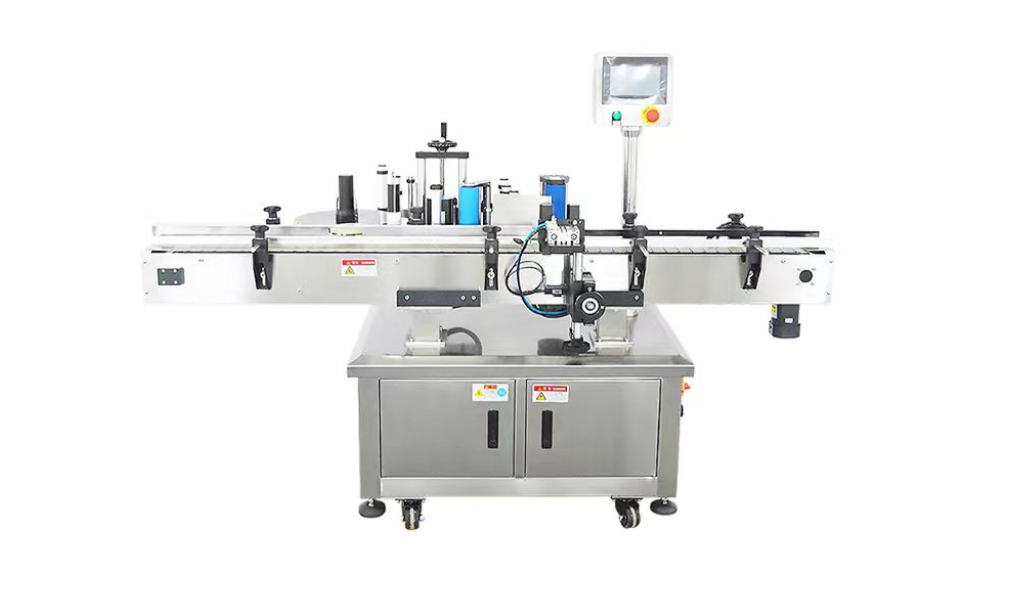

YL-T200 labeling machine
Self-adhesive Labeling Machine for Round Bottles is an upgraded product of our company. It has simple structure and easy operation. Stepless adjustment can be made to the production capacity according to the specifications and characteristics of bottles and label paper. |
|

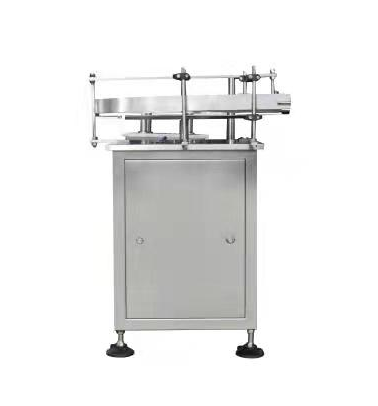

LP-650S Bottle Collector
Automatic Rotary Bottle Conveyor is suitable for cosmetic, food and other industries. It can convey glass bottles, plastic bottles, round bottles and square bottles. The product can convey bottles in order to the next working procedure, making it more efficiently to arrange bottles. |
MODEL | YL-LP160 |
Production capacity | φ20mm~φ100mm(Replace the plastic tray) |
Material Range | 40mm~100mm |
Set range | 600MM |
Vibration level | 300KG |
Voltage/power | 220V/50HZ /300W |
Equipment size/packaging size | 110X154X120CM/167X112X128CM |
MODEL | YL-8 | YL-12 | YL-16 |
Production capacity | 1-40 Bottles/min | 1-40 Bottles/min | 10-60 Bottles/min |
Material Range | 5#~00#Hard capsule、soft capsule、∅6~16mm tablet、Strip tablet、∅6~12mmpill etc | 5#~00#Hard capsule、soft capsule、∅6~16mm tablet、Strip tablet、∅6~12mmpill etc | 5#~00#Hard capsule、soft capsule、∅6~26mm tablet、Strip tablet、∅6~22mmpill etc |
Set range | 2~9999 grains (adjustable) | 2~9999 pcs(Adjustable) | 2~9999 pcs(Adjustable) |
Bottle type | 10-500ml Round bottle, square bottle | 10-500ml Round bottle, square bottle | 10-500ml Round bottle, square bottle |
Precision | above 99.5% | above 99.5% | above 99.5% |
Hopper capacity | 25L (1 # capsule can contain 10600 capsules) | 25L (1 # capsule can contain 10600 capsules) | 40L |
Bottle high adjustment range | ≤270MM | ≤160MM | ≤160MM |
Air supply | 0.6MPA | 0.6MPA | 0.6MPA |
Voltage/power | 110-220V 50HZ-60HZ/0.6KW | 110-220V 50HZ-60HZ/0.6KW | 110-220V 50HZ-60HZ/0.9KW |
Net /gross | 260KG/320KG | 350KG/450KG | 350KG/400KG |
Equipment size/package size | 138X125X155CM / 148X131X159CM | 138X170X170CM / 148X180X159CM | 138X170X170CM / 148X180X159CM |
Remarks | The production speed is related to the drug variety, size, bottle size, and bottle volume | The production speed is related to the drug variety, size, bottle size, and bottle volume | The production speed is related to the drug variety, size, bottle size, and bottle volume |
MODEL | YL-DIM10 |
Round bottle diameter range | φ20mm~φ100mm |
Round bottle height range | 35~200mm |
Applicable desiccant range | 0.5-2g |
weight | 120KG |
Voltage/Power | 220V/50HZ /0.3KW |
Equipment size | 140X80X190CM |
MODEL | YL-XG03 |
Production capacity | 40-120 Bottles/min |
Bottle outer diameter/height | Φ23-Φ120/45-150mm |
Bottle cap size OD | Φ20-Φ65mm |
Conveying direction | Left → Right |
Voltage/power | 110-220V 50HZ-60HZ/1.8KW |
Net Weight | 500KG |
Equipment size | 220x105x190CM |
MODEL | YL-2000A |
Suitable for bottle diameter and height | 20mm-100mm (customizable), bottle height 48mm–170mm. |
Sealing head adjustable stroke (height from ground) | 860mm-1100mm (customizable) |
Can meet the line speed | 0-25m/min |
Sealing speed and production capacity | ≧100 bottle/h |
Voltage/Power | 220V,50HZ/2.0KW |
Sensor head size | 450mm*200mm*90mm |
Net weight | 75kg |
Required conveyor belt requirements | 1380mm *120mm *930mm±100mm |
Machine size | 510mm*750mm*1380mm |
MODEL | YL-TB200 |
Production Capacity | 25 to 70 bottles/minute (depending on bottle size and label) |
Power supply, power | 220V/50HZ 1.2KW |
Labeling accuracy | ±1mm(Does not include product or label errors) |
Round bottle diameter range | 30-100mm |
Applicable label size | L:20-320mm, W:15-175mm |
Equipment size | 2000X1100X1400MM |
net weight | 200KG |
