Semi Automatic Manual Capsule Filling Machine

The updated semi-auto capsule filling machine JTJ-V results in faster production, meeting G.M.P. requirements, more accurate filling, a safer operation, simple maintenance. It operate without noise and cleaning is simple.

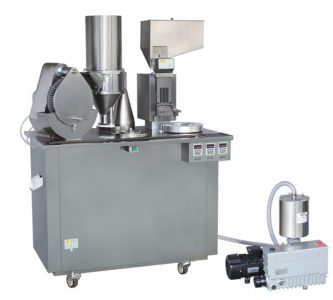

Semi Automatic Manual Capsule Filling Machine JTJ-V

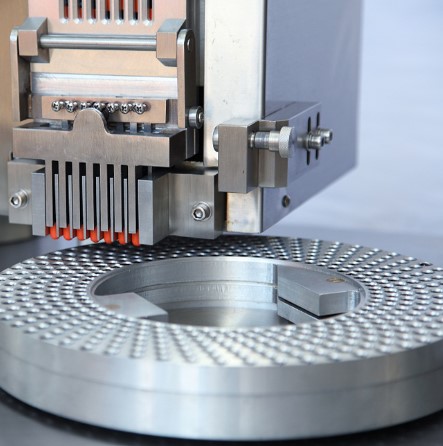

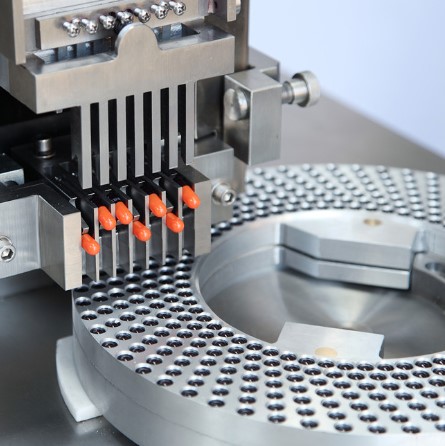

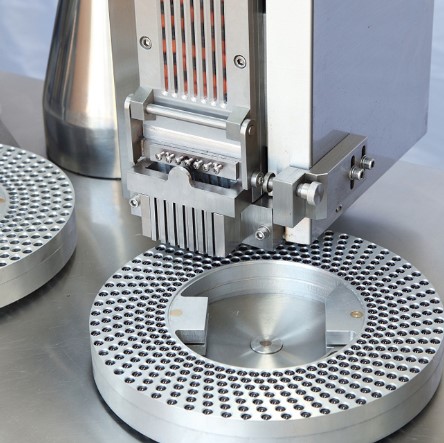

The functions of first station include capsule feeding, aligning and insertion into bores of holding ring. Also, vacuum is used for separating capsule cap and body in first station. After orientation of capsule, capsule cap can stay in upper holding ring and capsule body can stay in lower holding ring. A special design allows for changing mold for different size capsules within 10 minutes easily, simply, precisely.

Request for Quote

Description
Specifications

JTJ-V Capsule Filling Machine General Description

Semi-Automatic capsule filling machine is a device that has manual and automatic parts for filling empty capsules.

JTJ-V (with an auto rotary table) is a semi-automatic capsule filling machine with variable speed control that can fill up to 25000 capsules per hour. It is suitable for filling hard gelatin capsules in sizes 00#, 0#, 1#, 2#, 3# and 4#.

Sample Display:

Benefits:
1. You can use it to fill different types of fillers including powders, pellets, or granules.
2.It provides automation up to a certain degree thus increasing the speed of production.
3.You can use it for a considerably larger scale of production in comparison to the manual capsule filling machine.
4. The initial cost of purchasing it is lower in comparison to a fully automatic capsule filling machine.
5.Using this machine eliminates almost all of the personnel you would employ when using the manual filling machine.
6.The filling accuracy is higher than that of the manual filling machine.
7.The machine adheres to the right manufacturing quality standards hence safe for use .
8.The operations of the machine do not emit large sound hence a peaceful working environment.

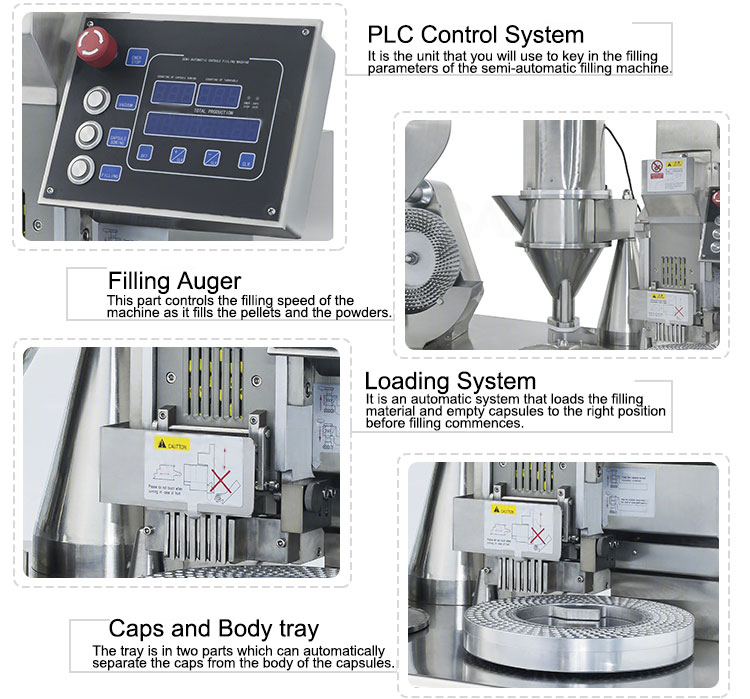

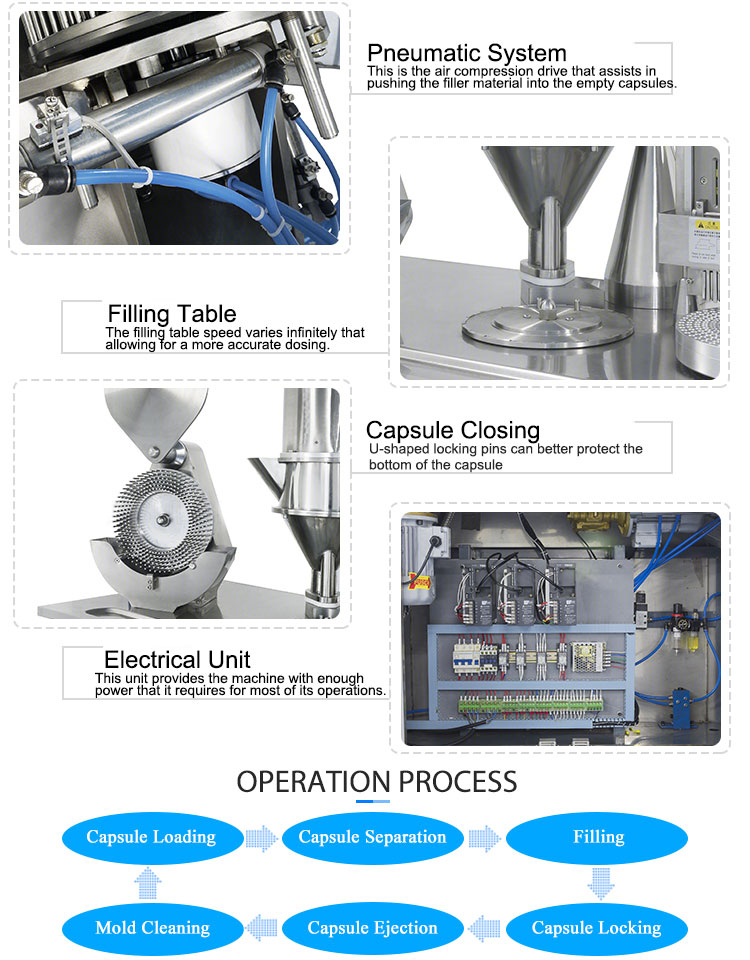

Detail photo

Model	JTJ-V (with buttons)
Output	1 to 25,000 per hour
Capsule Sizes	00#, 0#, 1#, 2#, 3#, 4#
Filling Materials	Powder and tiny granules without viscosity
Total Power	3.2KW
Compressed Air	0.03 m³/min, 0.7 MPa
Electrical Supply	As electrical facilities vary from country to country, please provide your specifications at time of order so that the correct motors are supplied with your machine
Overall Dimensions	18008001750mm, 380kg
