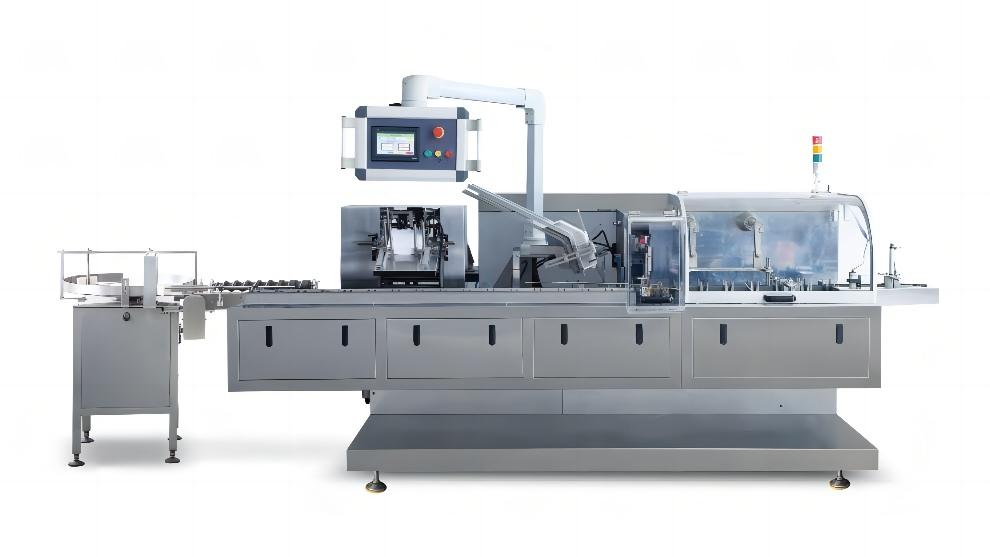

Automatic Cartoning Machine WZH-120
Automatic Cartoning Machine WZH-120

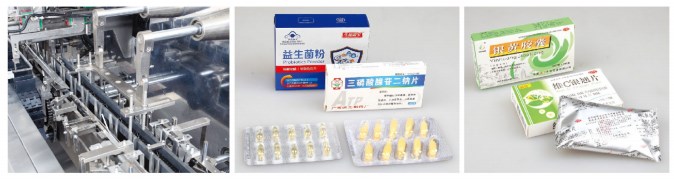

WZH-120 automatic bottle cartoning machine is a high-tech products with light,electricity,gas,machine integration. Suitable for bottles(round,square) cosmetics, food, health products and similar items automatic cartoning. The working process is transferring bottles or articles; pharmaceutical’s instruction transferring(can be set to automatically fold 1-4); automatic box opening and transferring then push bottle and instruction into cartons;and complete the automatic printing batch number and sealing both ends of carton. All frame is made of stainless steel,working table is covered by plexiglas doors and windows,meet the pharmaceutical industry”GMP”standards. Transmission part of the design of the overload protection,set up emergency stop devices,man-machine interface screen control system to protect the personal safety of the operator.
Performance characteristics
- Compact structure,stable and advanced performance,easy to operate and easy to understand;
- It adopts frequency control (packing capacity can be adjust 50-100 cartons/min,it depends on packing material);
- PLC automatic control system;
- Adopt international famous electric components and pneumatic components;
- Man -machine interface operating system,automatically display cartoning speed and counting;
- High intensity photoelectric monitor operation,if there have abnormal operation that will be automatically display and trouble clearing in time;
- Manual and automatic conversion;
- With automatic detection systems,alarm and substandard products,excluding positoning stop;Mechanical overload automatically shut down.
| Cartoning speed | 50-100(Box/min) | |
| Box | Quality requirement | 250-450g/m²【Base on carton size】 |
| Dimension range (L×W×H) | (60-180)×(20-80)×(15-70)mm | |
| Instructions | Quality requirement | 60-70g/m² |
| Unfolded leaflet specification (L×W) | (80-250)×(90-170)mm | |
| Fold range (L×W) | 【1-4】(Fold) | |
| Compressed air | Working pressure | ≥0.6mpa |
| Air consumption | 120-160L/min | |
| Power | 380V 50Hz | |
| Overall dimensions(L×W×H) | 3170×1260×1750mm | |
| Weight | About1200kg | |
