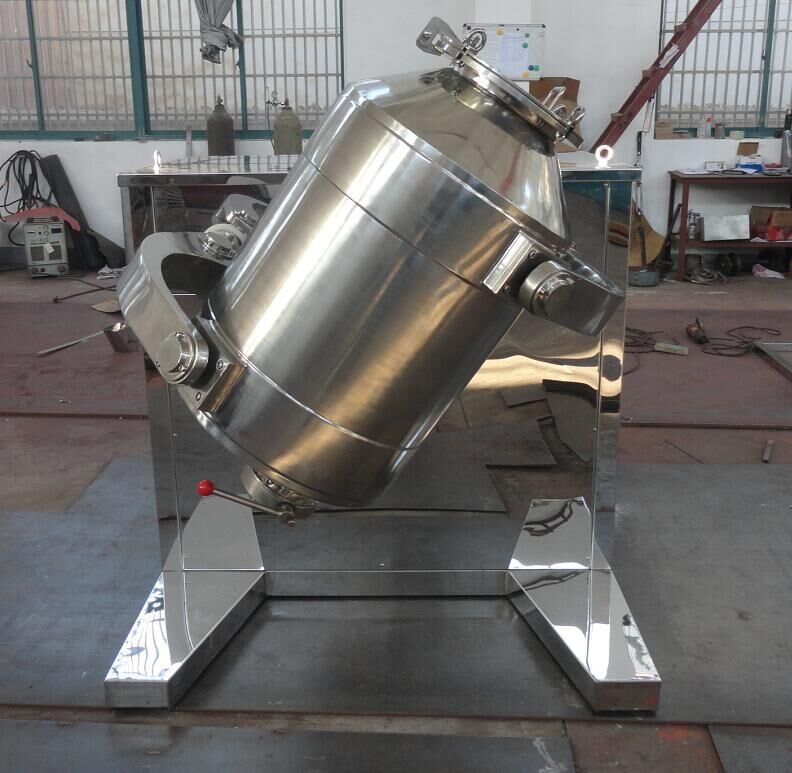

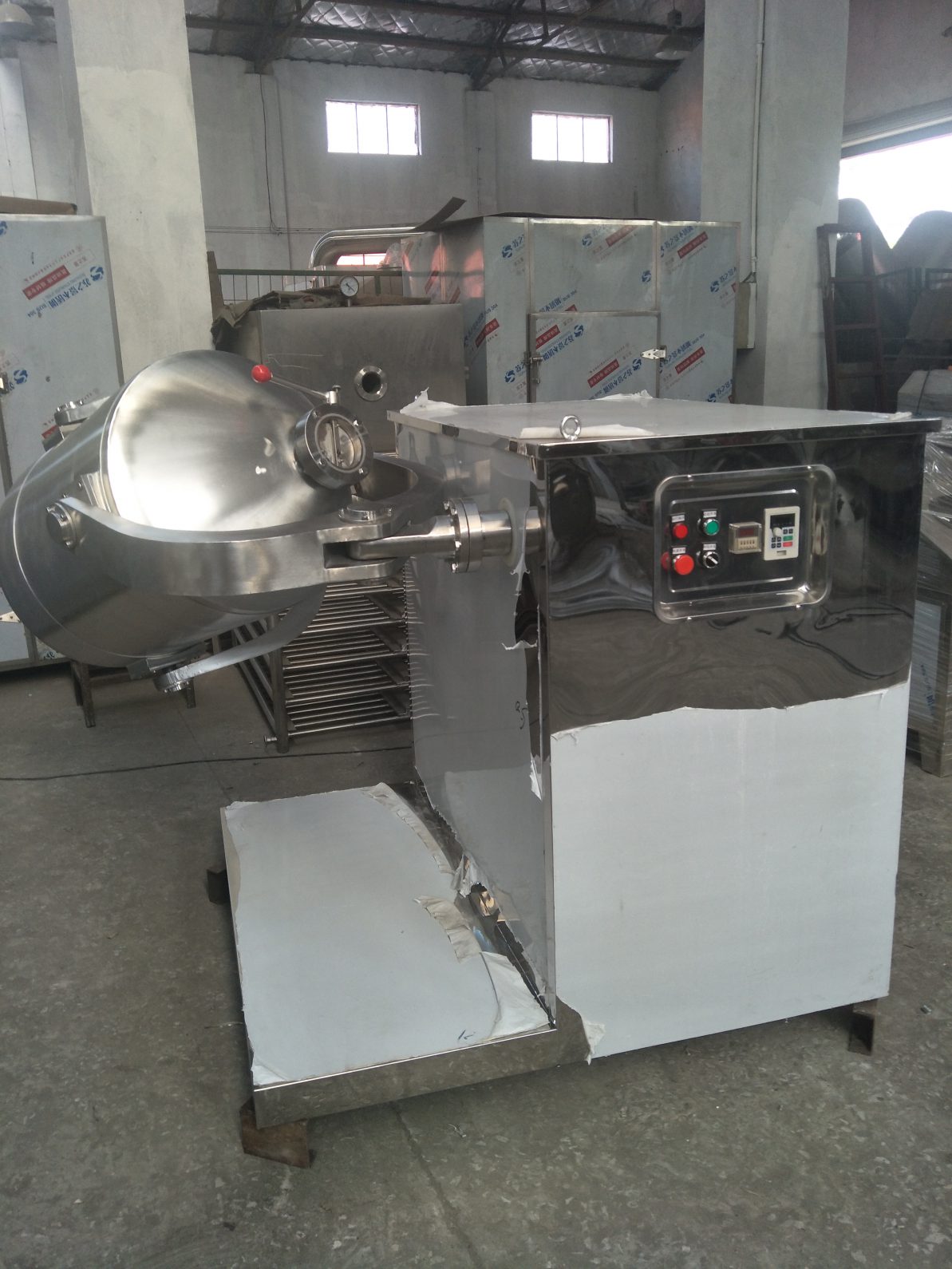

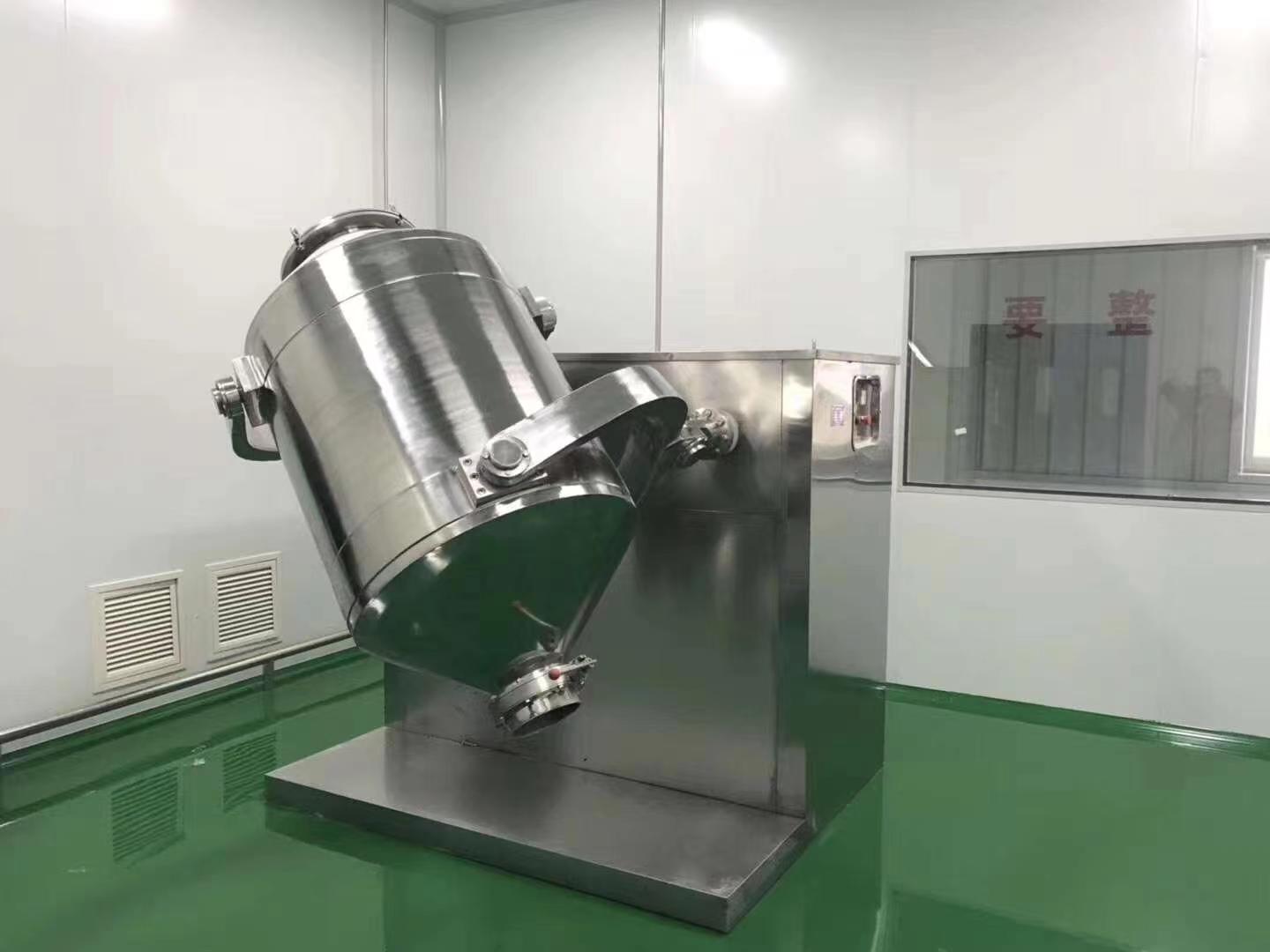

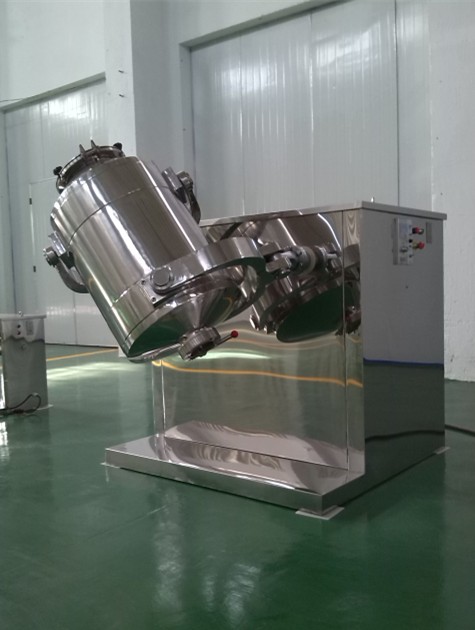

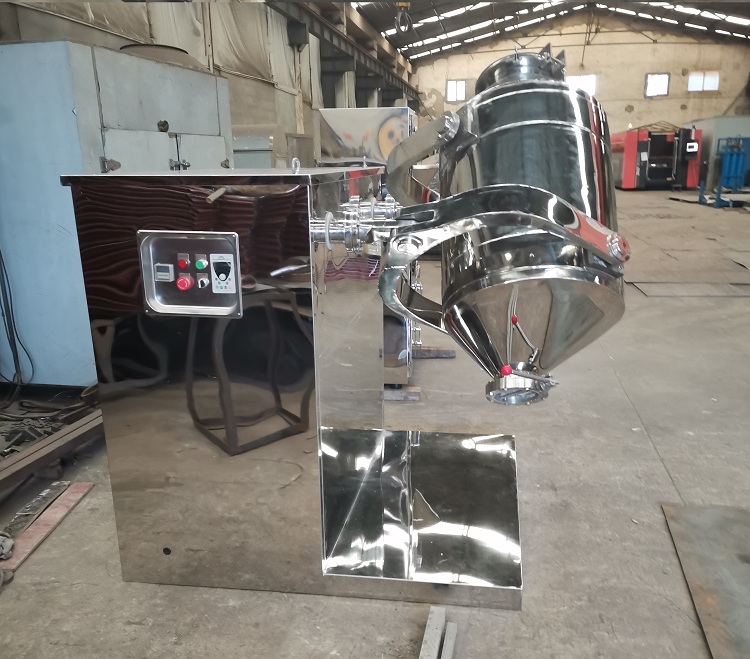

SYH Type Three-Dimensional Motion Mixer
High Capacity Three-Dimensional Mixer Powder Blending Machine SH100-600
Introduction
The SH series mixer is widely used in pharmacy, chemical industry, food industry, scientific research, etc. It is suitable for mixing dry-powder or granular materials with good flowing properties.
As the mixing vat is able to make multidirectional motion, it makes raw materials inside the vat has many cross-mixing points, therefore the mixing effect is better. Its degree of uniformity can achieve above 99.9%.
The max. loading efficiency can be 0.9 ( The loading efficiency of ordinary mixer is 0.4-0.6). The mixing time is short and efficiency is high. The material are mixed in an enclosed state with no contamination to the working environment and materials.
Structure:
2. It has a unique mixing vat design, the inner walls of which are fine polished. There is no dead angle, no contamination and the materials are discharged automatically under gravity function without any residue.
3. The materials are mixed in a completely sealed vat.
Remarks
- It will be better to install the machine under the guidance of a trained staff.
- The lubricant oil should be changed every three months.
Specifications
Model | Vat volume(L) | Max. filling volume(L) | Best filling volume(L) | Speed of main shaft (rpm) | Power (kw) | Weight (kg) | Dimensions
(mm) |
---|---|---|---|---|---|---|---|
SH-100 | 100 | 80 | 50 | 15 | 2.2 | 500 | 1200×1800×1500 |
SH-200 | 200 | 150 | 100 | 12 | 3 | 750 | 1300×1600×1500 |
SH-400 | 400 | 300 | 200 | 10 | 4 | 1200 | 1500×2200×1500 |
SH-600 | 600 | 450 | 300 | 10 | 5.5 | 1500 | 1800×2500×1650 |
